SKU:110501
Bonny Doon

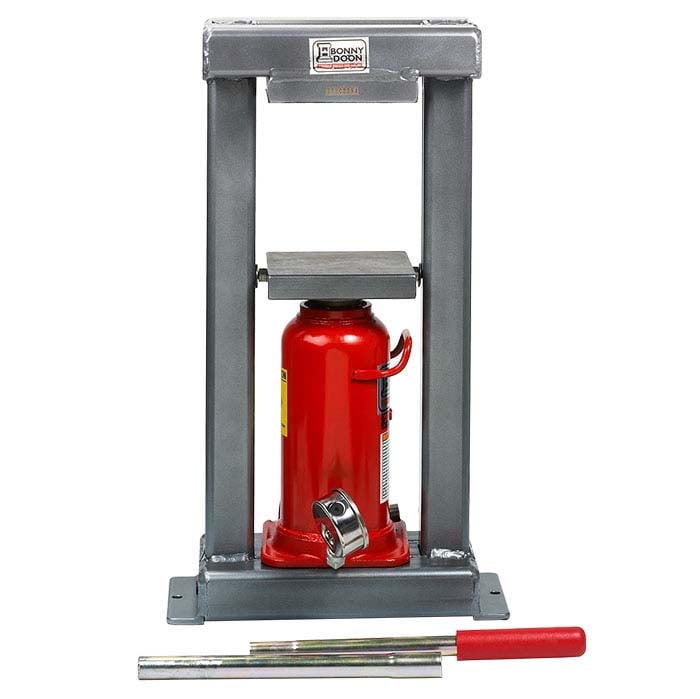

Bonny Doon Classic 20-Ton Manual Hydraulic Press & Ram
Delivery time: 3–5 weeks
Estimated arrival: Sep 29, 2026 – Oct 13, 2026
No se pudo cargar la disponibilidad de recogida
• Los resortes de alta resistencia permiten tiempos de ciclo más rápidos y están completamente ocultos dentro del marco para proteger al operador y los resortes.
• El marco de la prensa de 11" de ancho x 24" de alto está soldado con precisión por soldadores certificados que utilizan tubos de acero de calibre grueso de 2" cuadrados para lograr un marco estructuralmente rígido que resiste la flexión más que cualquier prensa comparable.
• Acabado de esmalte horneado resistente a la oxidación. Impulsada por un sistema hidráulico manual, la prensa Classic ofrece una fuerza máxima de 22 toneladas, adaptando el metal a la forma deseada. La prensa ofrece:
• Área de trabajo de 6-3/4” de ancho x 6-3/4” de profundidad x 7” de alto (171,5 x 171,5 x 177 mm).
• una platina inferior autonivelante para impresiones uniformes y constantes.
• Pies de montaje integrados y pretaladrados para que pueda atornillar la prensa directamente a una estación de trabajo.
• La manija en T abre y cierra la válvula de liberación.
• manija del gato que eleva la platina. Las características del ariete incluido son:
• Base forjada en caliente para mayor durabilidad.
• Sellos triples integrados para un funcionamiento suave.
• Un sistema de derivación de aceite protege las piezas internas evitando la extensión excesiva del ariete.
- Precio por unidad: Precio por unidad
- Dimensiones: 346,075 x 152,4 x 609,6 mm
- Marca: Bonny Doon
- Peso del envío: 106,7 libras (48,398 kg)
- País de origen: Estados Unidos
- Peso: 48,398 kg

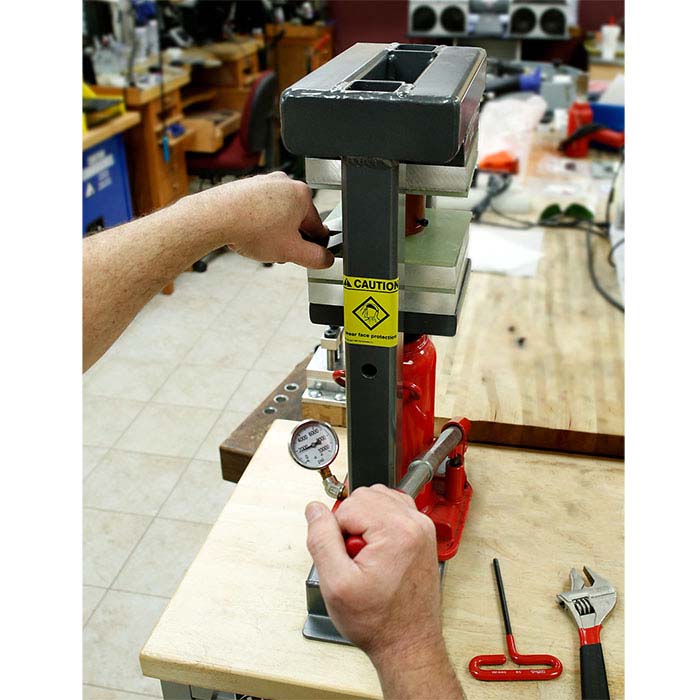

Built specially for jewelers by jewelers, a Bonny Doon hydraulic press is engineered and built to be the safest on the market and the most versatile metal forming tool in any jeweler’s shop. Each press includes a high-quality ram, making them more economical than other presses and allowing you to start forming virtually right out of the box. Manufactured exclusively for Rio Grande.You’ll increase your productivity and decrease your production time with the Bonny Doon Classic 20-ton hydraulic press. The press allows you to emboss, texture, bend, form, shape and cut metal precisely. Create perfectly formed bracelets and rings, bend thin or thick metal precisely, form your silver or gold into 3D shapes easily. It delivers consistent, even results with less marring, reducing finishing time. The included 10,000psi pressure gauge makes it easy to accurately create repeat patterns.Bonny Doon presses are engineered for durability, safety, ergonomics and for ease of use. The solid workmanship behind each press allows it to withstand the pressure it generates with no flexing. • Heavy-duty springs allow for faster cycle times and are completely hidden inside the frame to protect the operator and the springs. • The 11"W x 24”H press frame is precision-welded by certified welders using heavy-gauge, 2"-square steel tubing for a structurally rigid frame that resists flexing more than any comparable press. • A rust resistant baked enamel finish.Powered with manual hydraulics, the Classic press delivers a maximum 22 tons of force, conforming metal to your desired shape. The press offers: • 6-3/4”W x 6-3/4”D x 7”H (171.5 x 171.5 x 177mm) working area. • a self-leveling lower platen for consistently even impressions. • pre-drilled, integrated mounting feet so you can bolt the press directly to a workstation. • T-handle opens and closes the release valve.• jack handle that raises the platen.The included ram features: • Hot-forged base for greater durability.• Integrated triple seals for smooth operation.• An oil bypass system protects internal parts by preventing overextension of the ram.
Specifications
- Brand:
- Bonny Doon
- Country of origin:
- United States
- Dimensions:
- 346.075 x 152.4 x 609.6mm
- Dimensions mm:
- 152,4 x 609,6 mm
- Price per unit:
- Precio por unidad
- Shipping weight:
- 106.7 lbs (48.398kg)
- Weight:
- 48.398 kg
- Weight kg:
- 48.398
