SKU:700915220
Rio Grande
Rio Digital-Vacuum Wax Injection System, 220-Volt
Delivery time: 3–5 weeks
Estimated arrival: Feb 26, 2026 – Mar 12, 2026
Kunne ikke indlæse afhentningsmuligheder
Dette system er alt, hvad du behøver for at producere højkvalitets, højproduktions voksinjektioner. Med dobbelt-injektionsfunktion trækker Rio voksinjektoren luft ud af formen før injektion, hvilket eliminerer luftbobler og hulrum. Derefter introducerer den første voksinjektion smeltet voks i formen, efterfulgt et splitsekund senere af en anden injektion, der presser den blødere, afkølende voks dybt ind i formens detaljer og fuldender fyldningen med varm flydende voks. Resultatet er et mere komplet, fejlfrit og detaljeret voks-mønster, som du kan producere igen og igen—mere pålideligt, hurtigere og mere rentabelt end nogensinde før! Du styrer alle trin i processen, fra gryde- og dysetemperaturer (103–211°F/40–99°C) til vakuum- og injektionsindstillinger (maks. tryk er 30psi).
- Injektor voks kapacitet: 6 lbs. (3 qts.)
- Injektorens dimensioner: 21-1/2"B x 15"D x 17-1/2"H (546 x 381 x 445 mm). I samarbejde med Rio voksinjektoren i dette system er Techtrol Pro trykcontrolleren og klemmetårnet. Den leverer konsekvent, kontrollerbart klemmetryk på forme, hvilket sikrer din produktion nøjagtige voks-vægte hver gang og frigør dine hænder til at forberede den næste form. Du kan vælge dit ønskede tryk fra næsten 300 indstillinger (maks. tryk er 70psi) og eliminere fejl uden at skulle trykteste dine forme hver gang. Techtrol Pro-opsætningen inkluderer et akrylpladekit, der giver dig mulighed for at skabe specialtilpassede fiksturer.
- Kontrolkonsollens dimensioner: 8-1/4"B x 13-1/2"D x 7-1/2"H (210 x 345 x 190 mm).

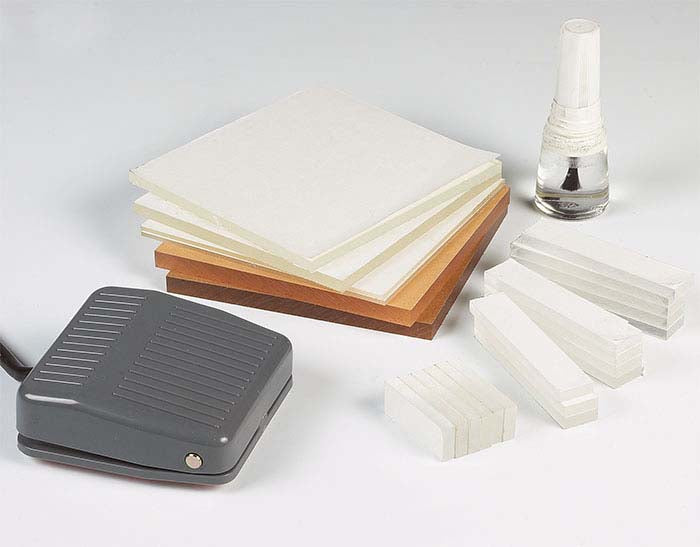

- Klemme-mekanismens dimensioner: 6-1/4"B x 6-1/4"D x 8-1/4"H (160 x 160 x 210 mm). Systemet inkluderer en fodbetjent pedal til håndfri betjening. En trykluftkilde og en vakuumpumpe (ikke inkluderet) er påkrævet.
This system is all you need to produce high-quality, high-production wax injections. With double-injection action, the Rio wax injector draws air out of the mold before injection, eliminating air bubbles and voids. Then, the initial wax injection introduces molten wax into the mold, followed a split second later by a second injection that forces the softer, cooling wax deep into the mold details and completes the fill with hot liquid wax. The result is a more complete, defect-free and highly detailed wax pattern that you can produce over and over—more reliably, more quickly and more profitably than ever before! You control all steps of the process, from pot and nozzle temperatures (103–211°F/40–99°C) to vacuum and injection setting (max. pressure is 30psi). • Injector wax capacity: 6 lbs. (3 qts.) • Injector dimensions: 21-1/2"W x 15"D x 17-1/2"H (546 x 381 x 445mm). Partnered with the Rio wax injector in this system is the Techtrol Pro pressure controller and clamp tower. It delivers consistent, controllable clamping pressure on molds providing your operation with accurate wax weights every time and leaving your hands free to prepare the next mold. You can select your desired pressure from nearly 300 settings (max. pressure is 70psi) and eliminate rejects without having to pressure-test your molds every time. The Techtrol Pro set-up includes an acrylic plate kit that allows you to create custom fixtures. • Control console dimensions: 8-1/4"W x 13-1/2"D x 7-1/2"H (210 x 345 x 190mm). • Clamp mechanism dimensions: 6-1/4"W x 6-1/4"D x 8-1/4"H (160 x 160 x 210mm). The system includes a foot control pedal for hands-free operation. A compressed air source and a vacuum pump (not included) are required.
Specifications
- Amperage:
- 5 amps
- Brand:
- Rio Grande
- Country of origin:
- United States
- Price per unit:
- Priced per Each
- Shipping weight:
- 98.56 lbs (44.706kg)
- Voltage:
- 220 volts
- Weight:
- 44.706 kg
- Weight kg:
- 44.706
