Bonny Doon Precision Non-Conforming Die Containment System
Delivery time: 3–5 weeks
Estimated arrival: Feb 24, 2026 – Mar 10, 2026
Kunne ikke indlæse afhentningsmuligheder
Brug dette system med enhver Bonny Doon præcisions ikke-konforme matricer (sælges separat) og din 20- og 55-ton Bonny Doon hydrauliske presse til at skabe højrelief-former med utrolige detaljer. Den matchende stålcylinder og trykker er bearbejdet med ekstremt tætte tolerancer (inden for få mikroner), hvilket maksimerer kraften fra den indeholdte polyurethan. Først placeres den messing præcisions ikke-konforme matricer (matricer er ikke inkluderet) i beholderen, derefter dit metal, derefter en 95 durometer polyurethan, og til sidst stålkontakten. Til former i stort antal anvendes 60 durometer polyurethan som et primært trin til at forforme metallet (begge polyurethaner er inkluderet). Brug din Bonny Doon presse til at presse trykkeren ind i beholderen; med så tætte tolerancer kan polyurethanen ikke sprede sig sidelæns, og pressens kraft fokuseres næsten udelukkende på matricens form. Resultatet er en højrelief-form med utroligt definerede detaljer. Dette system inkluderer:

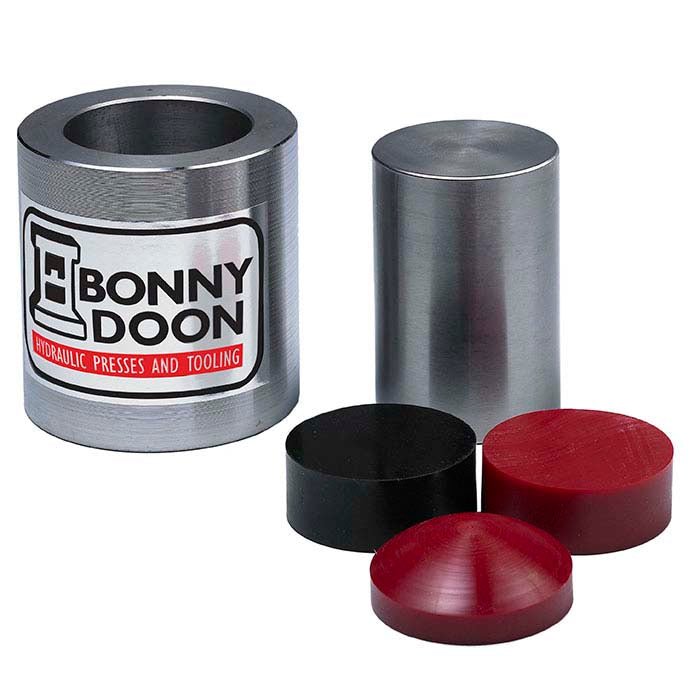

- en stålkontainer (2" diameter) med matchende trykker
- to 95d polyurethan-puder (en flad, en kuplet)
- en 60d (sort) polyurethan
Use this system with any Bonny Doon precision non-conforming die (sold separately) and your 20- and 55-ton Bonny Doon hydraulic press to create high-relief forms with incredible detail. The matching steel cylinder and pusher are machined to extremely close tolerances (within a few microns), maximizing the power of the contained urethane.First set the brass precision non-conforming die (dies are not included) into the container, then your metal, then a 95 durometer urethane, then the steel pusher. For high-volume shapes, use the 60 durometer urethane as a primary step to pre-form the metal (both urethanes are included). Use your Bonny Doon press to force the pusher into the container; with such close tolerances, the urethane cannot spread laterally, and the force of the press is focused almost exclusively into the die form. The result is a high-relief form with amazingly defined details. This system includes:• one steel container (2" diameter) with matching pusher• two 95d urethane pads (one flat, one domed)• one 60d (black) urethane
Specifications
- Brand:
- Bonny Doon
- Country of origin:
- United States
- Dimensions:
- 76.2 x 76.2mm
- Dimensions mm:
- 76.2 x 76.2mm
- Shipping weight:
- 8.05 lbs (3.651kg)
- Weight:
- 3.651 kg
- Weight kg:
- 3.651
