Tube-Holding and Cutting Pliers
Delivery time: 3–5 weeks
Estimated arrival: Mar 02, 2026 – Mar 16, 2026
تعذر تحميل توفر الاستلام
تم تصميم فكوك هذه الكماشة الفريدة خصيصًا لتثبيت الأنابيب أو القضبان الصغيرة بثبات أثناء قطعها بمنشار الصائغ، مما يضمن نهاية مقطوعة تمامًا بدون انهيار الأنبوب. تحتوي كل فك على ثلاث شقوق متطابقة تثبت أنابيب بقطر خارجي يتراوح من 2 إلى 10 مم. فتحة بعرض 1 مم على طول الفك تناسب شفرة منشار الصائغ؛ ضع الشفرة في الفتحة وقطع الأنبوب المثبت في الشقوق بقطع مستقيم تمامًا.
- تحتوي هذه الكماشة على مفصل صندوقي؛ يحيط نصف المفصل بالنصف الآخر، ويحتوي المحور بداخله. يحافظ هذا المفصل على محاذاته لفترة أطول بكثير من المفصل المتداخل لكنه يسمح للأداة بالفتح فقط حتى حجم الصندوق.
- يتكون نابض الورقة المزدوجة من شرائح معدنية مسطحة ومقواة مثبتة داخل كل مقبض أداة، موضوعة لتلتقي وتبقي المقابض متباعدة (والفكوك مفتوحة) حتى يتم ضغطها للإغلاق؛ يوفر النابض ارتدادًا سريعًا وقويًا لتحسين الإنتاجية.
- المقابض المطلية بالبلاستيك توفر قبضة مريحة وآمنة.

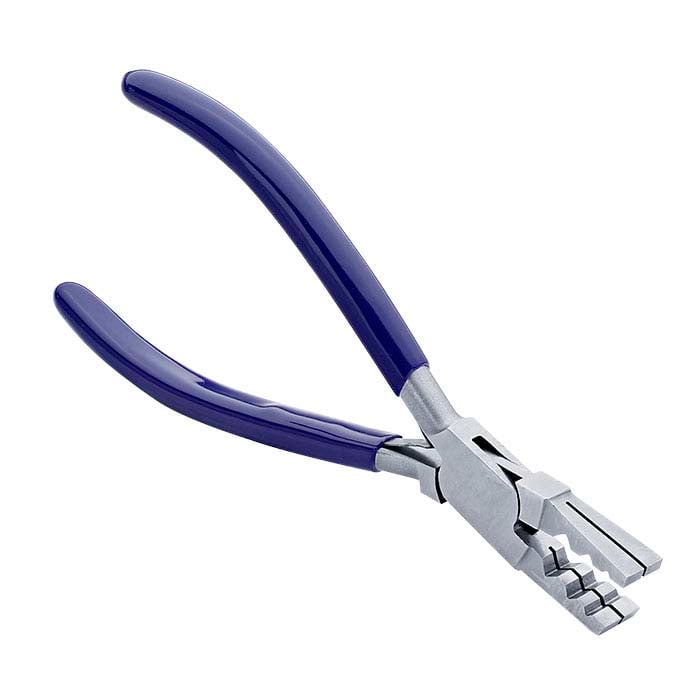

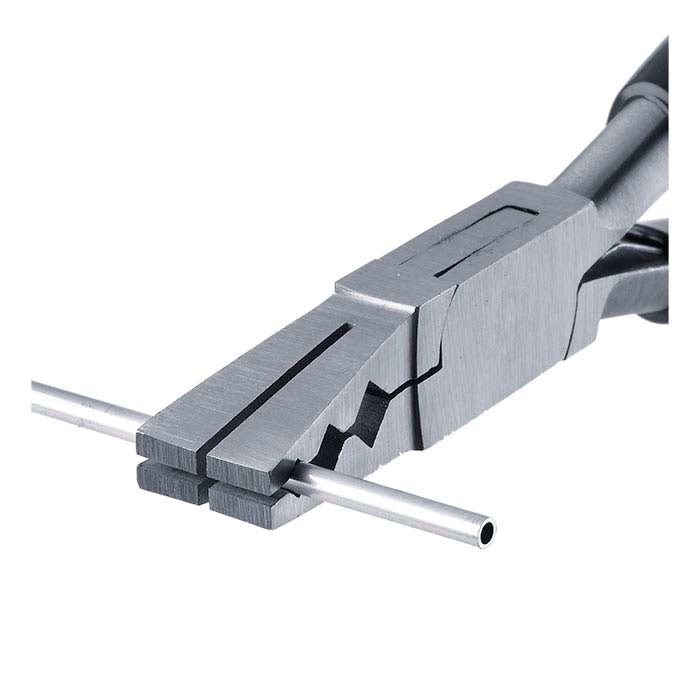

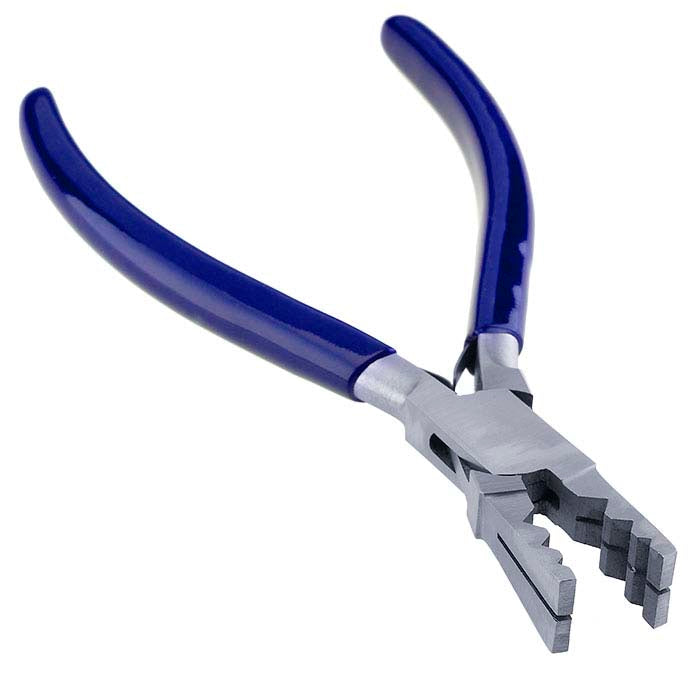

The jaws of these unique pliers are specially designed to hold tubing or small rods steady while being cut with a jeweler’s saw, ensuring a perfectly flush-cut end without collapsing the tube. Three corresponding notches in each jaw hold tubing ranging from 2 to 10mm OD. A 1mm slot along the length of the jaws fits a jeweler’s saw blade; set your blade in the slot and saw through the tubing held in the notches in a perfectly straight cut.• These pliers have a box joint; one half of the joint surrounds the other half, and the pivot is contained within. This joint holds its alignment far longer than a lap joint but allows the tool to open only as far as the box size.• The double-leaf spring consists of flat, tempered metal tabs attached to the inside of each tool handle, positioned to meet and hold the handles apart (and the jaws open) until they are squeezed closed; the spring delivers a fast, strong rebound for improved productivity.• The plastic-dipped handles deliver a comfortable, secure grip.
Specifications
- Country of origin:
- Pakistan
- Handle length:
- 4.65" (118.1mm)
- Jaw length:
- 1.25" (31.75mm)
- Jaw style:
- Specialty
- Overall length:
- 165.1mm
- Price per unit:
- Priced per Each
- Shipping weight:
- 0.395 lbs (179.169g)
- Tip width:
- 14.1mm
- Weight:
- 0.179 kg
- Weight kg:
- 0.179
